Slide keyboard: スライド式キーボード

# 2025 # HCI # 3D-print # CH32V003

I created a slide-out keyboard for smartphones. スマホにつけるスライド式のキーボードを作った。

slide

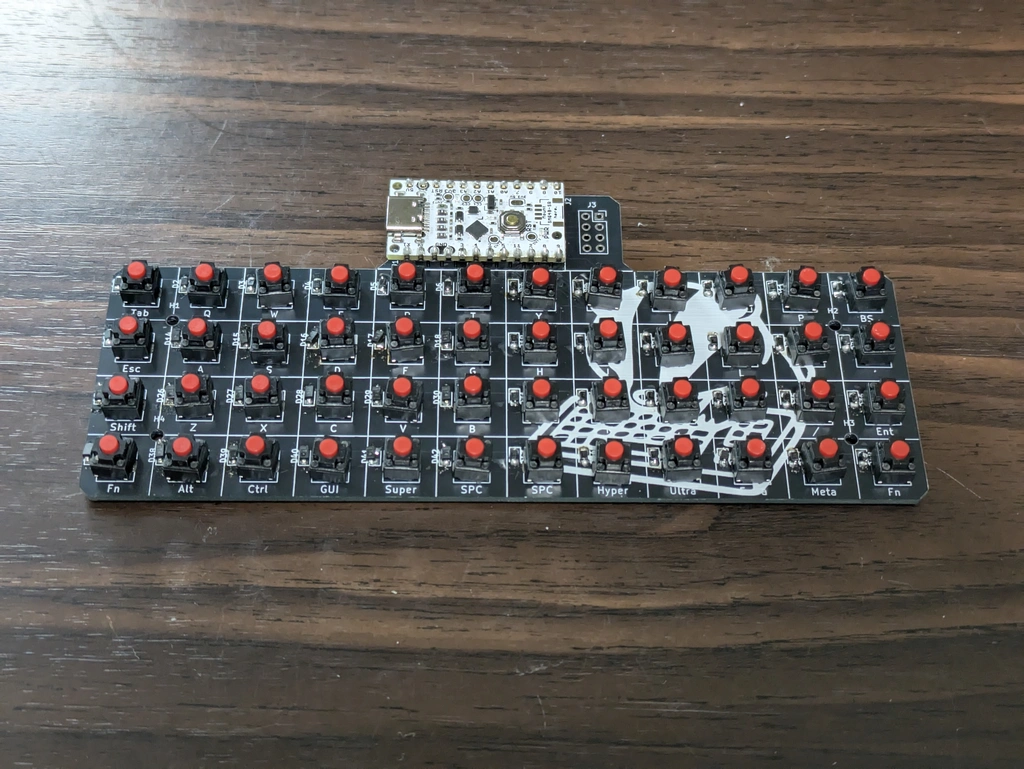

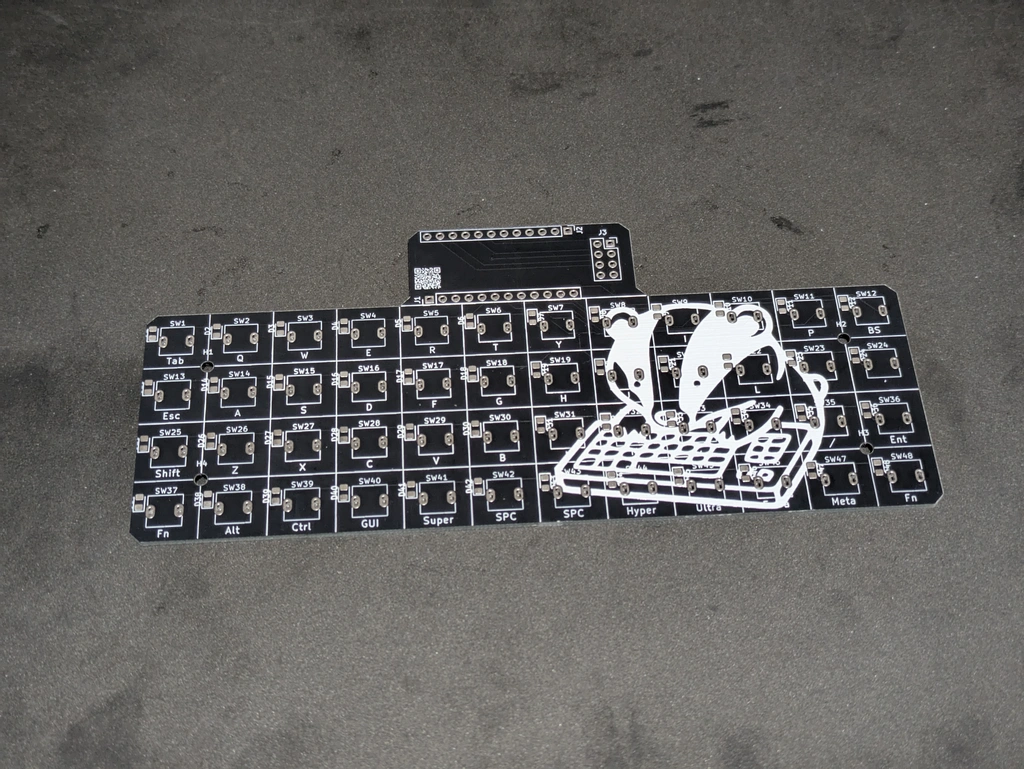

I got a present UIAPduino that uses CH32V003, So I decided build a keyboard with this.

This time, I set the key pitch to 12mm.

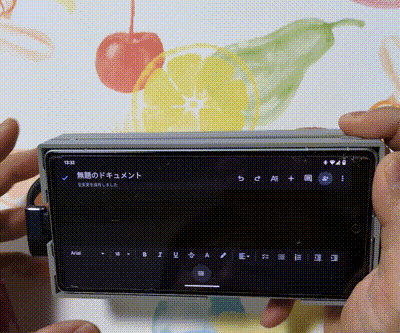

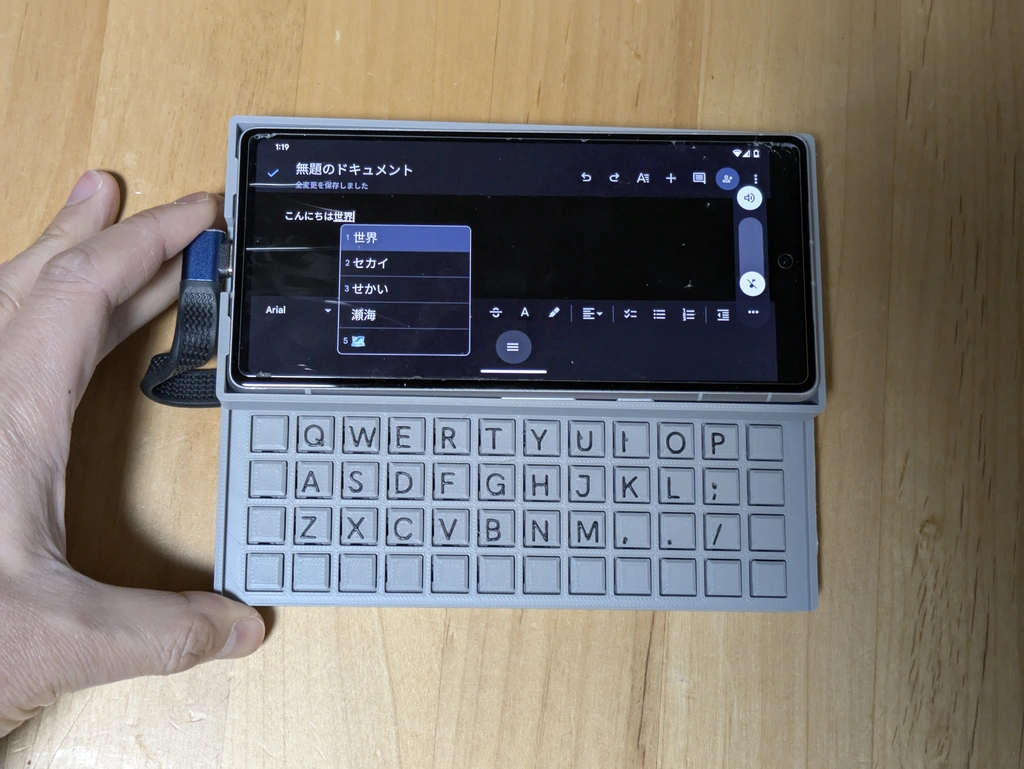

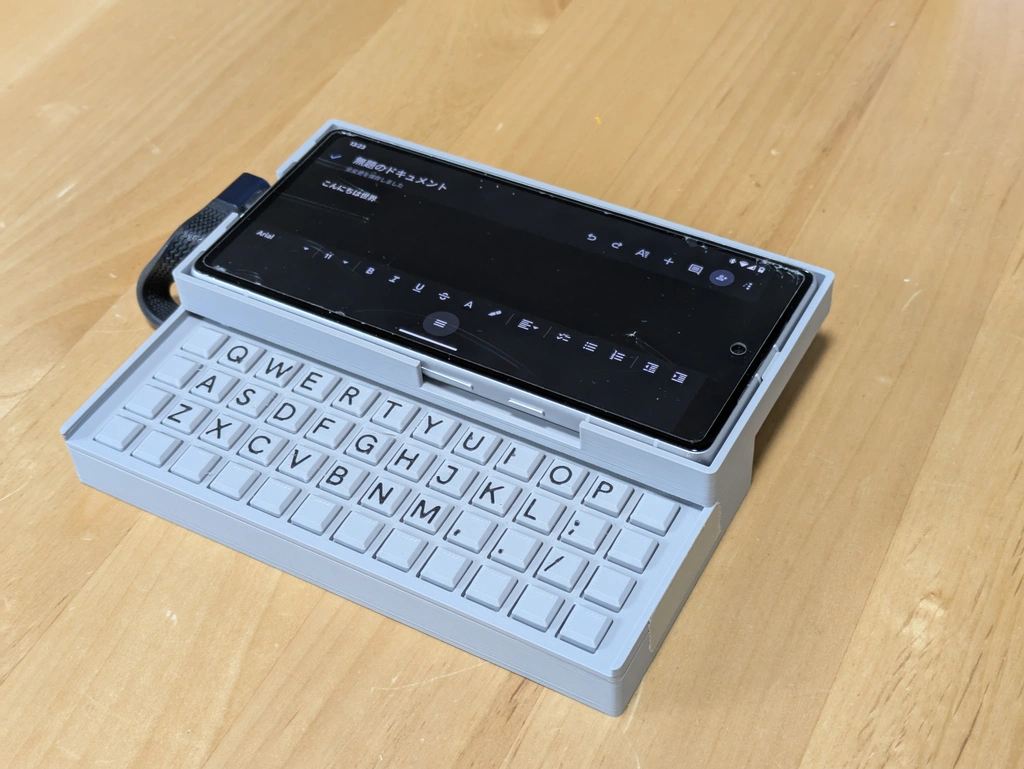

The keyboard width is about the same as the smartphone, so I made it so that it can be attached to the smartphone and slid out.

I designed it with the idea that it could be a size that is easy to use whether you place it on a desk and touch type with 10 fingers, or hold it with your hand and type with both thumbs.

When I actually made it, it was too small to type with 10 fingers, and my fingers were cramped.

Also, the distance my fingers had to travel was too far to type with my thumbs, so it didn’t work very well.

I tried to get the best of both worlds, but ended up with the worst of both worlds.

CH32V003が乗ったUIAPduinoというのをもらったので、 これを使ったキーボードを作った。

今回はキーピッチ12mmにした。 これは、キーボード幅がスマホと同じぐらいだったので、 スマホにつけてスライドして出せるようにした。

机に置いて10本の指でタッチタイプしてもいいし、 手でスマホごと持ち、両手の親指でタイプしても、 どちらでも使いやすいサイズにできるかなと思い、 この設計をした。

実際作ってみると、10本指で入力するには小さく、指が窮屈だし、 親指で入力するには指の移動距離が離れすぎていて、 あまりうまくいかない。

良いところ取りをしようとして、悪い所取りをしてしまった。
